LiFePO4 Battery Introduction

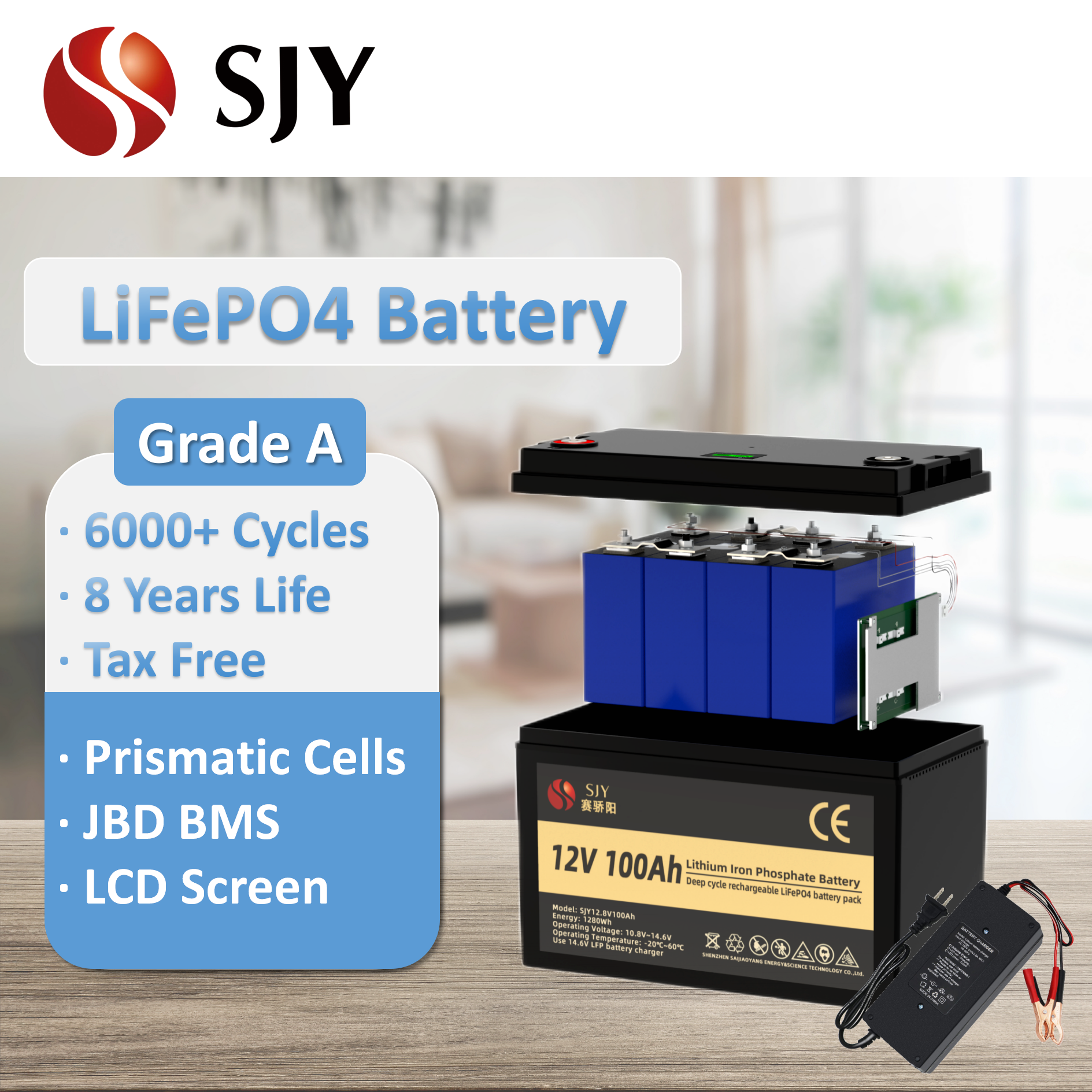

1.We are using a prismatic LiFePO4 battery.The battery is grade A and brand new.

1.1.Advantages of a prismatic LiFePO4 batteries

  • Compared to round LiFePO4 batteries, it can make full use of space

  • Compared with lead-acid batteries, the energy density is higher

  • Compared with lead-acid batteries, it is lighter, has a larger capacity and has a longer life

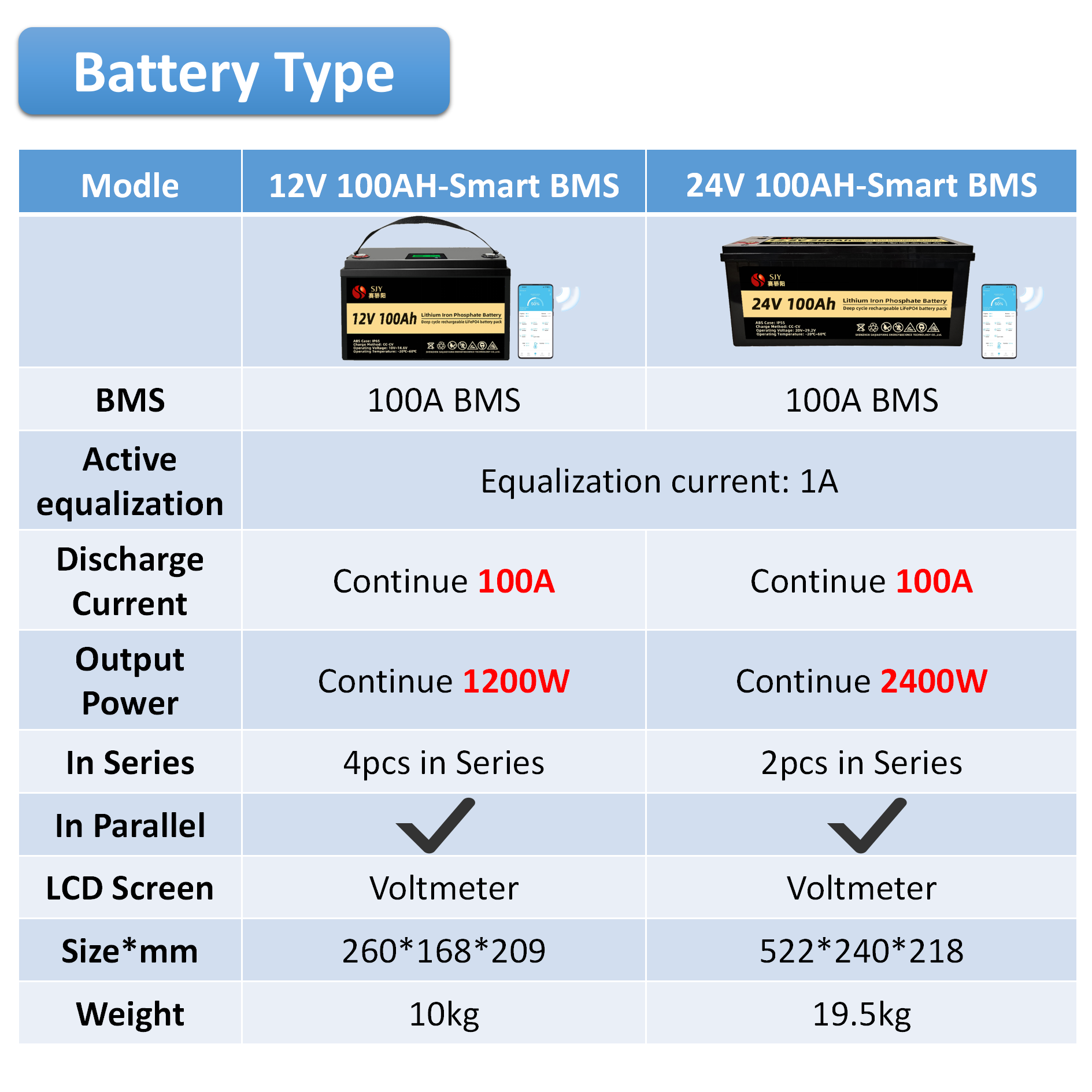

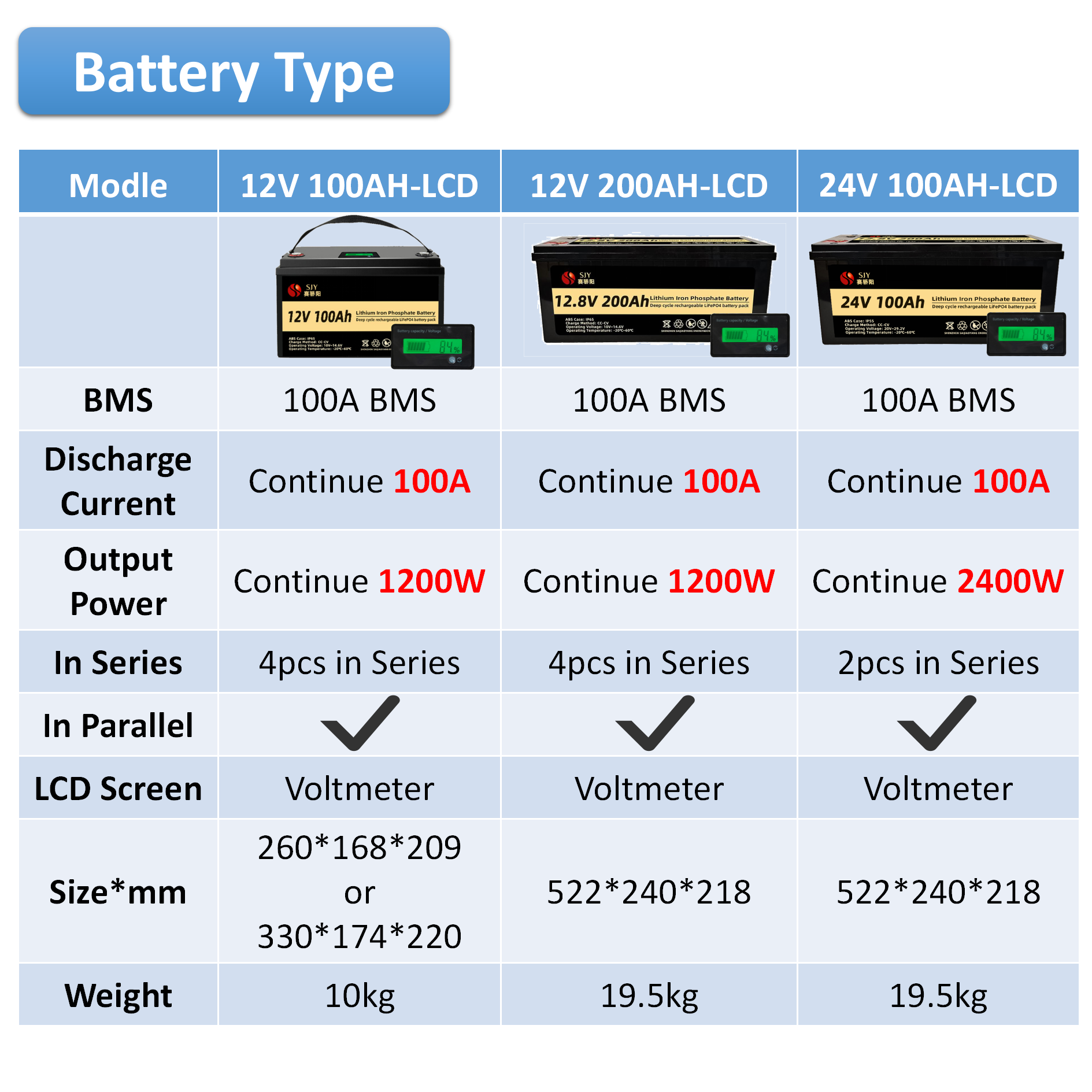

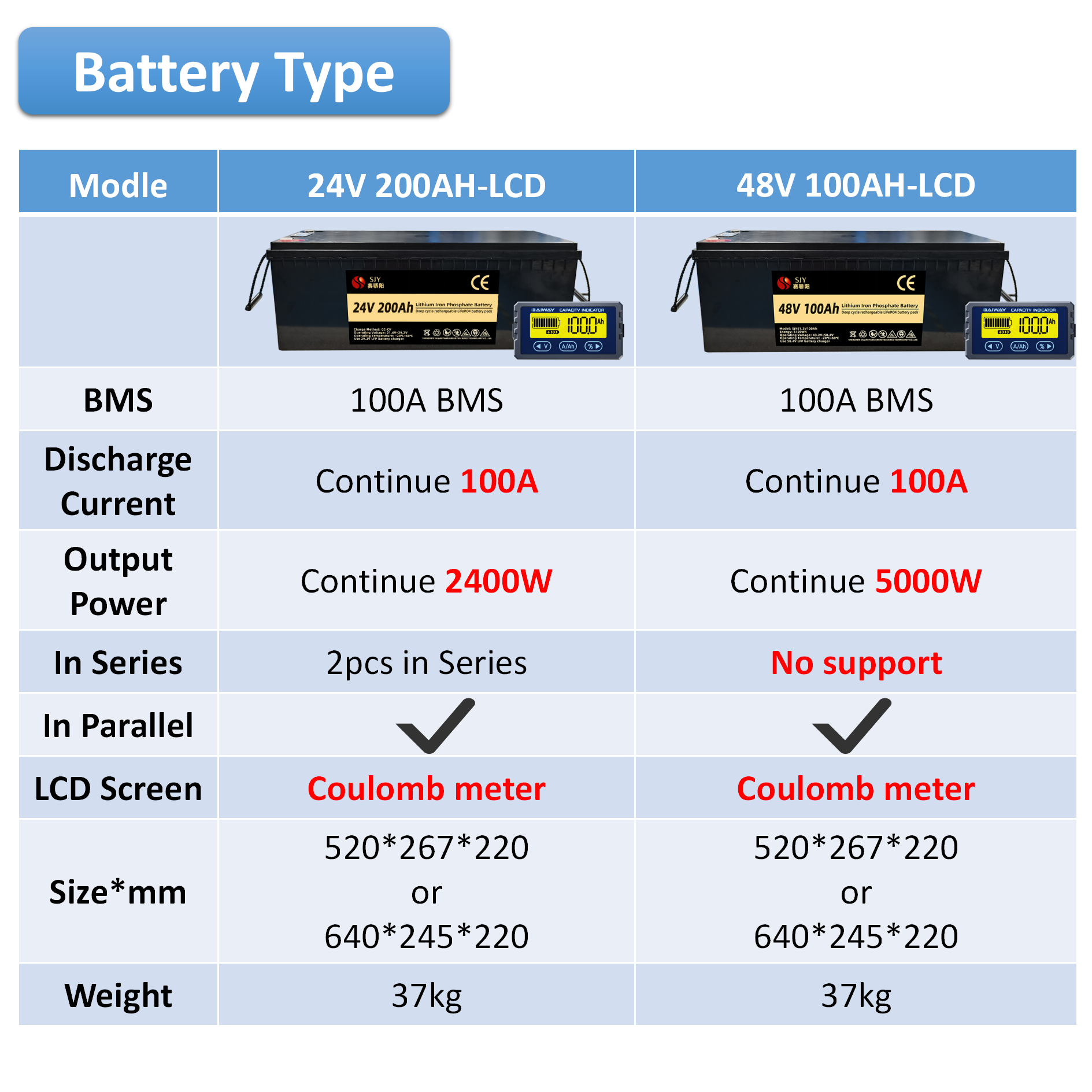

2.Models and specifications of LiFePO4 batteries

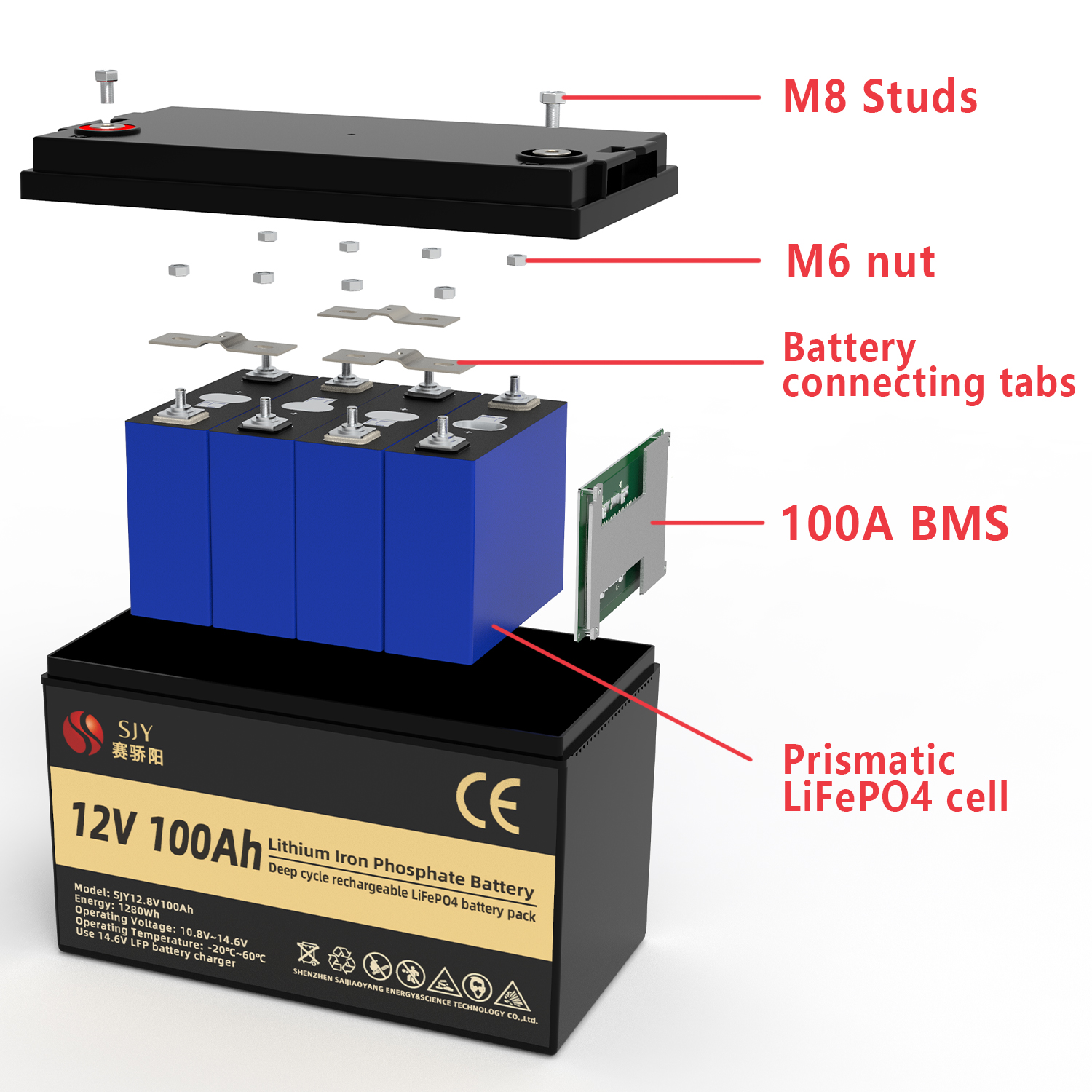

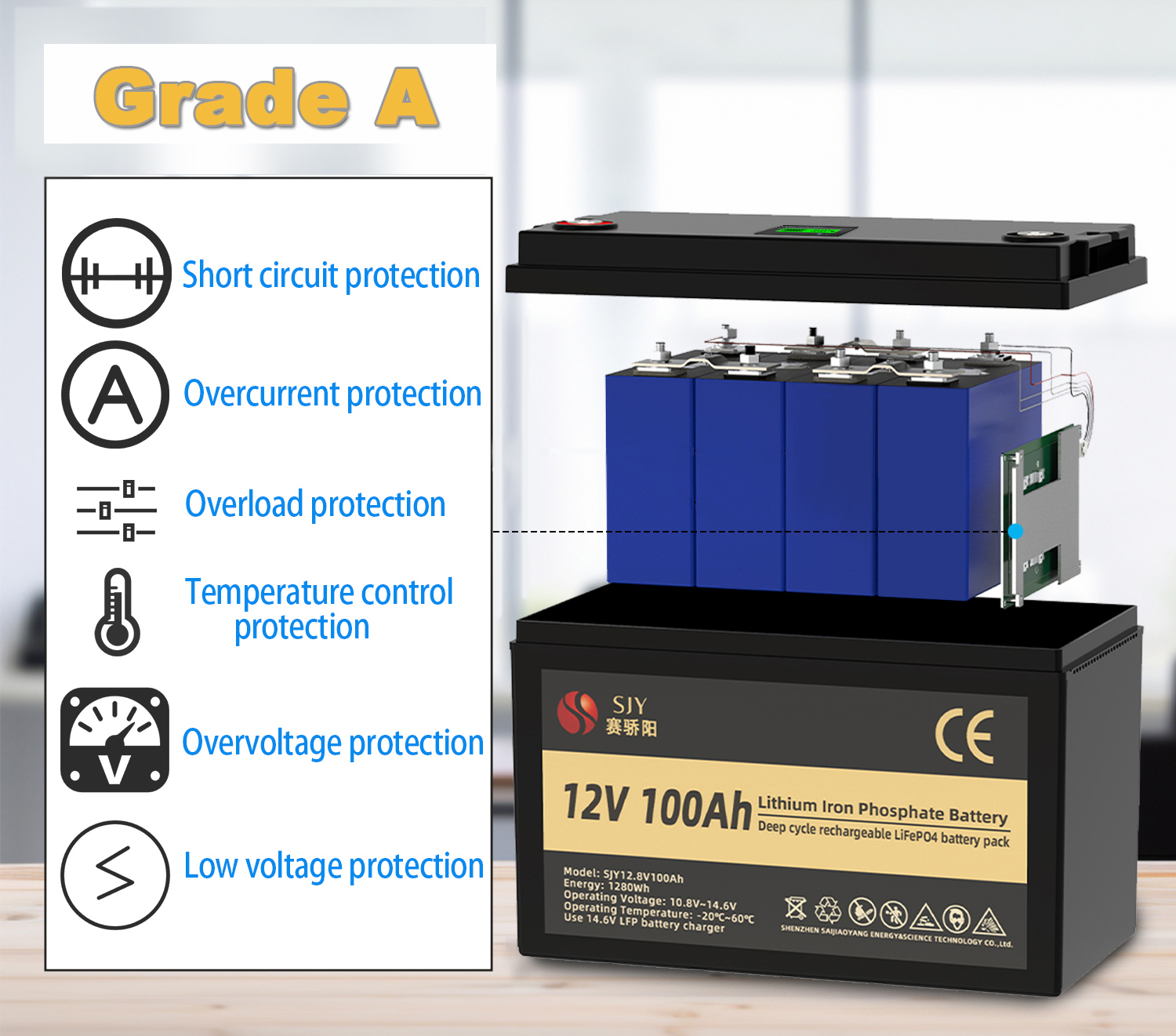

3.The structure of the battery

4.Battery protection function

  • Continuous current:100A

  • Maximum current:150A(2s)

  • The maximum charging current is recommended:50A

  • If the protection function of the BMS is triggered, the BMS needs to be activated with a current of 10A or less before it can be used again.

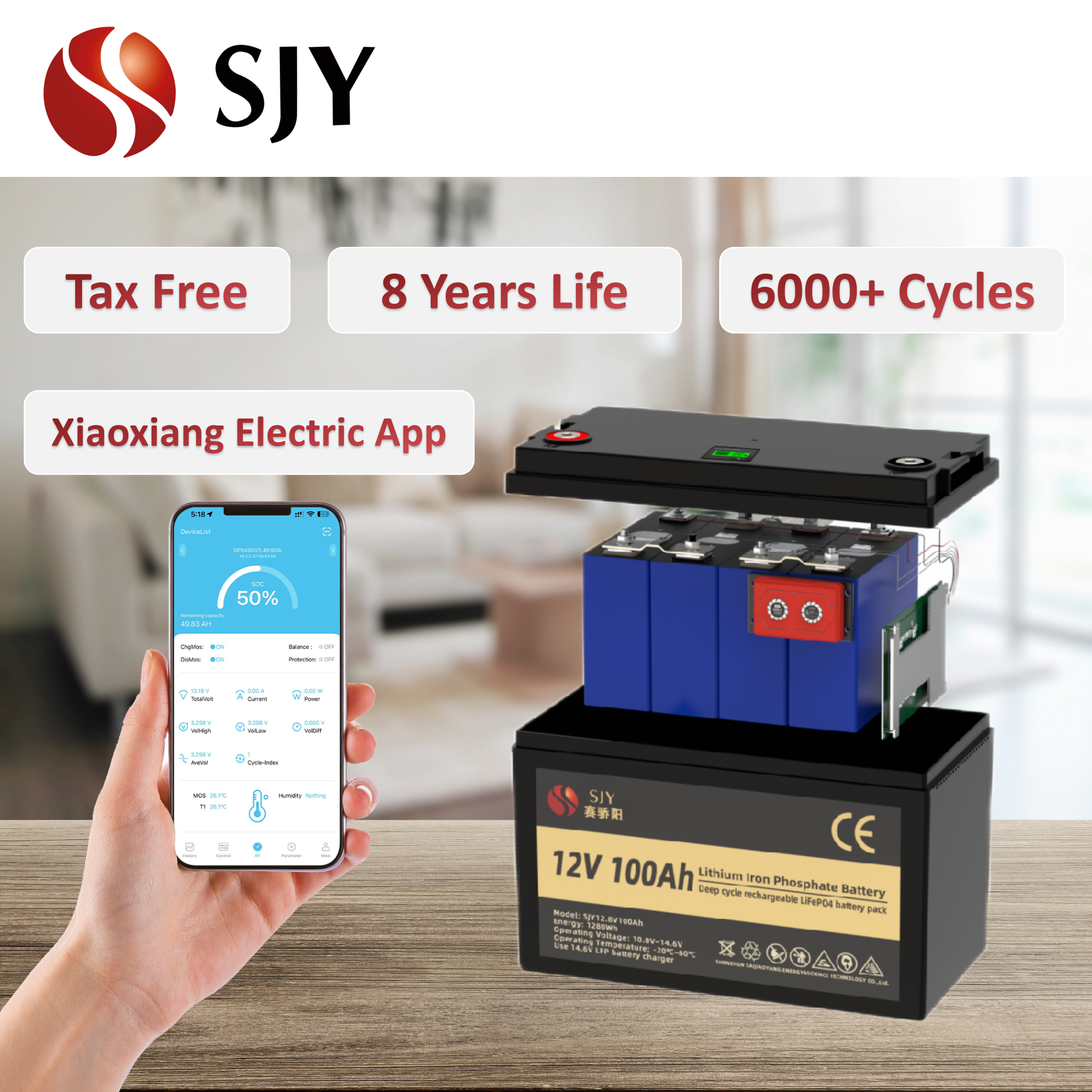

5.Introduction to Bluetooth functionality

Currently only 12V100Ah / 24V100Ah batteries have Bluetooth function.

If you need to buy in bulk, we can customize other batteries with Bluetooth function for you.

You can understand through the Bluetooth function:

  • The real-time capacity of the battery

  • The total voltage of the battery,power,temperature,cycle-index

  • Control the charging and discharging of the battery

  • Check the status of each cell

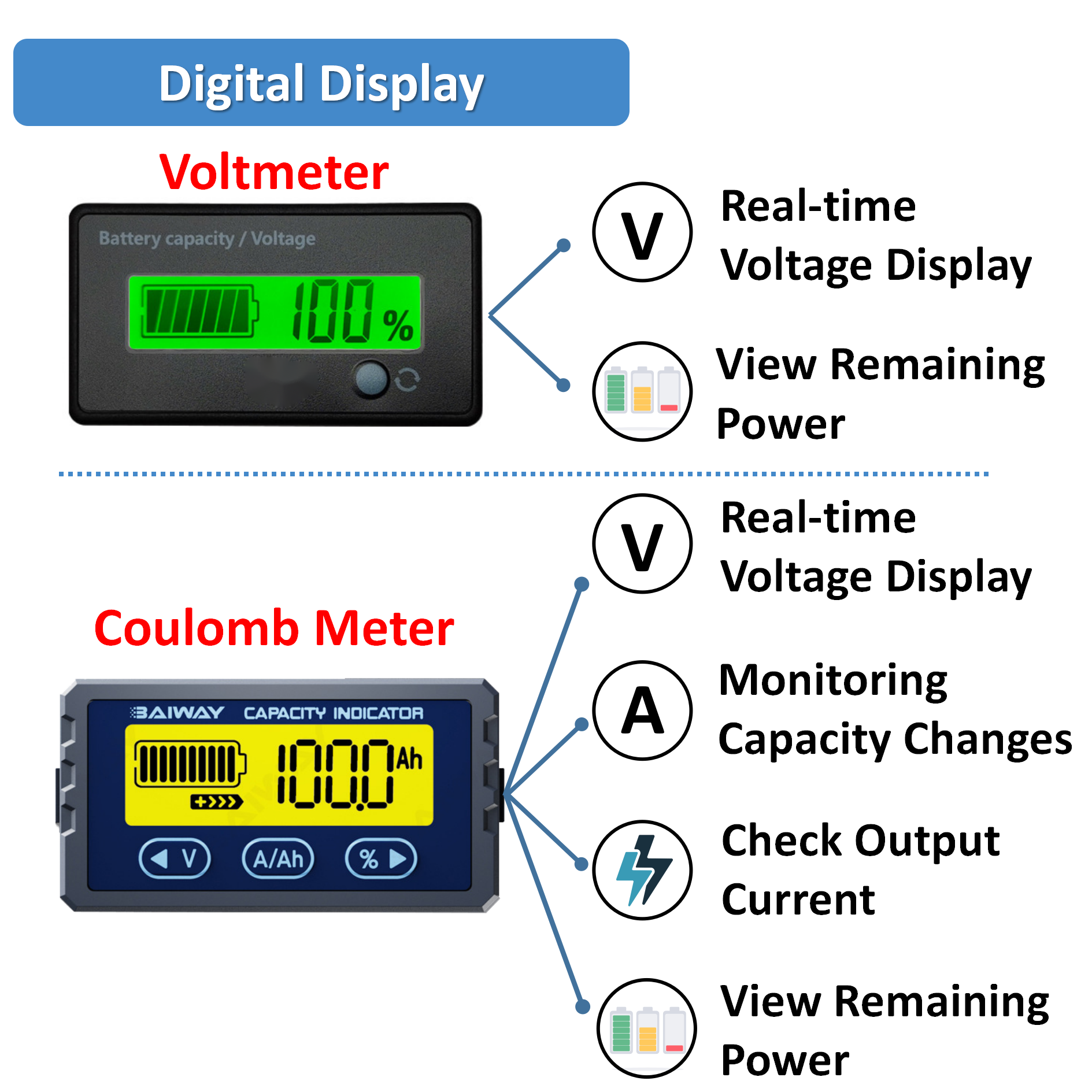

6.About LCD

Correspondence model
Voltmeter:
12V100Ah/12V200Ah/24V100Ah
Coulomb Meter:
24V200Ah/48V100Ah

Please note! The voltmeter displays the battery capacity based on the battery voltage, so the capacity of the voltmeter is for reference only.

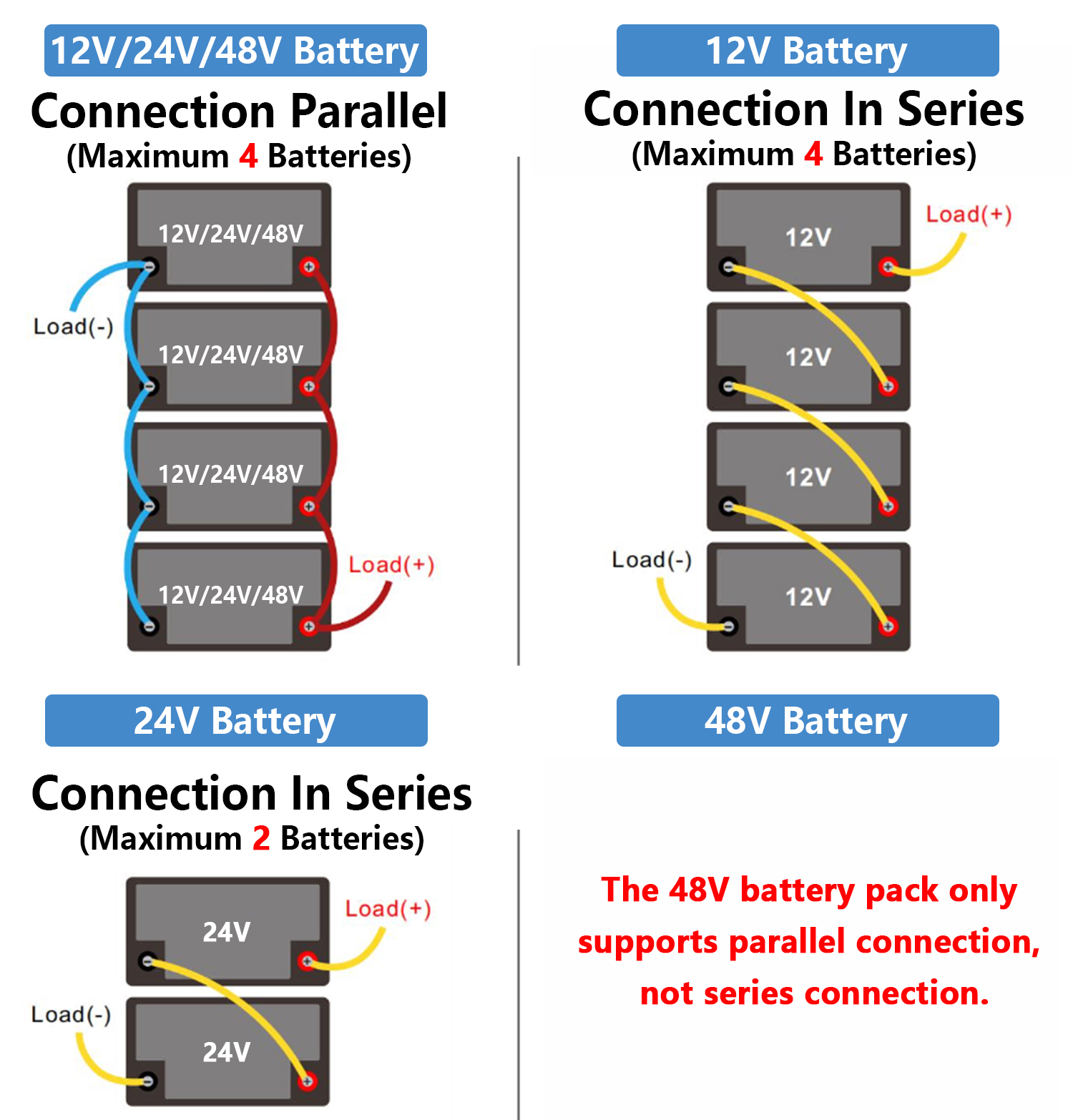

7.About series and parallel

8.The operating temperature of the battery

  • Charge Temperature:0 ℃ to 50 ℃ @60±25% Relative Humidity

  • Discharge Temperature:-20 ℃ to 55 ℃ @60±25% Relative Humidity

  • Storage Temperature:0 ℃ to 40 ℃ @60±25% Relative Humidity

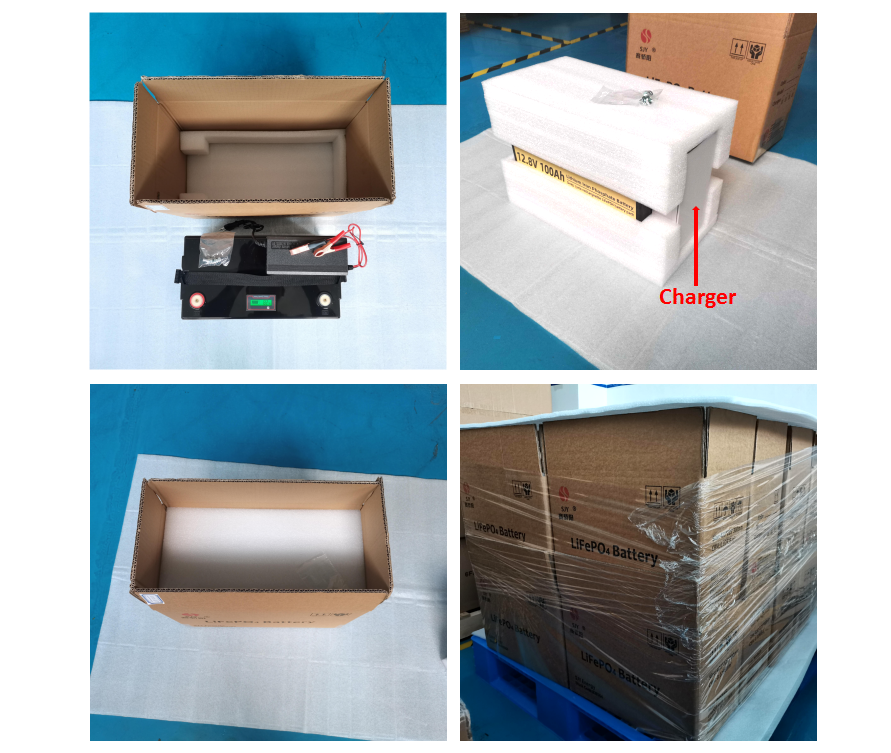

9.Packaging of the battery

  • Thickened foam for tight protection.

  • Equipped with M8 terminal.

  • Chargers need to be purchased additionally!

10.The scope of application of the battery
