LiFePO4 Cell Introduce

1.Dimensions and specifications

  • Nominal Capacity:100Ah

  • Nominal Energy:320Wh

  • Voltage:2.0~3.65V

  • Maximum Discharging Current:300A

  • Maximum Charging Current:200A

  • Working Temperature:Charge (0℃~55℃) / Discharge:(-20℃~55℃)

  • Storage Temperature:-30℃~60℃

  • Dimensions:Thickness(52.32±0.5mm) / Width(148.40±0.6mm) / Hight(119.00±0.6mm)

  • Cathode Material:Lithium-iron-phosphate

  • Cell Weight:1.91±0.15kg

  • Energy Density:165Wh/kg

  • IMP:≤0.4mΩ

  • Cycle Life:≥5000

  • Nominal Capacity:280Ah

  • Nominal Energy:896Wh

  • Voltage:2.0~3.65V

  • Maximum Discharging Current:280A

  • Maximum Charging Current:280A

  • Working Temperature:Charge (0℃~55℃) / Discharge:(-20℃~55℃)

  • Storage Temperature:-30℃~60℃

  • Dimensions:Thickness(72±0.5mm) / Width(173±0.6mm) / Hight(206±0.6mm)

  • Cathode Material:Lithium-iron-phosphate

  • Cell Weight:5.5±0.15kg

  • Cycle Life:≥10000

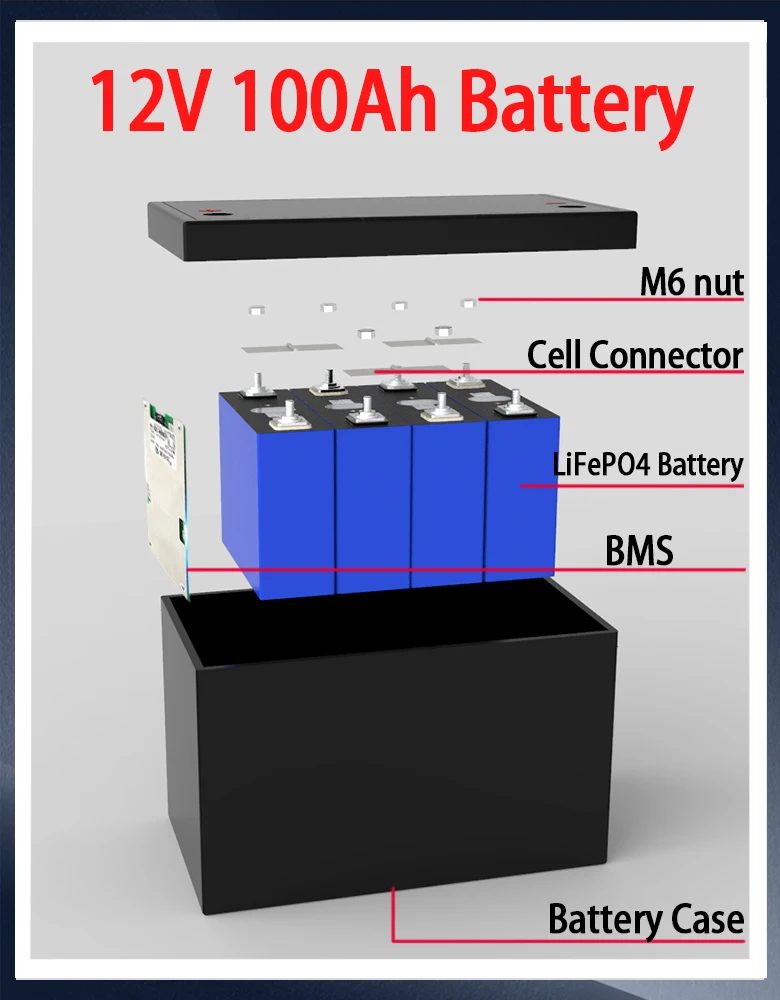

2.The structure of the cell

3.BMS Version

Professional 100A BMS:

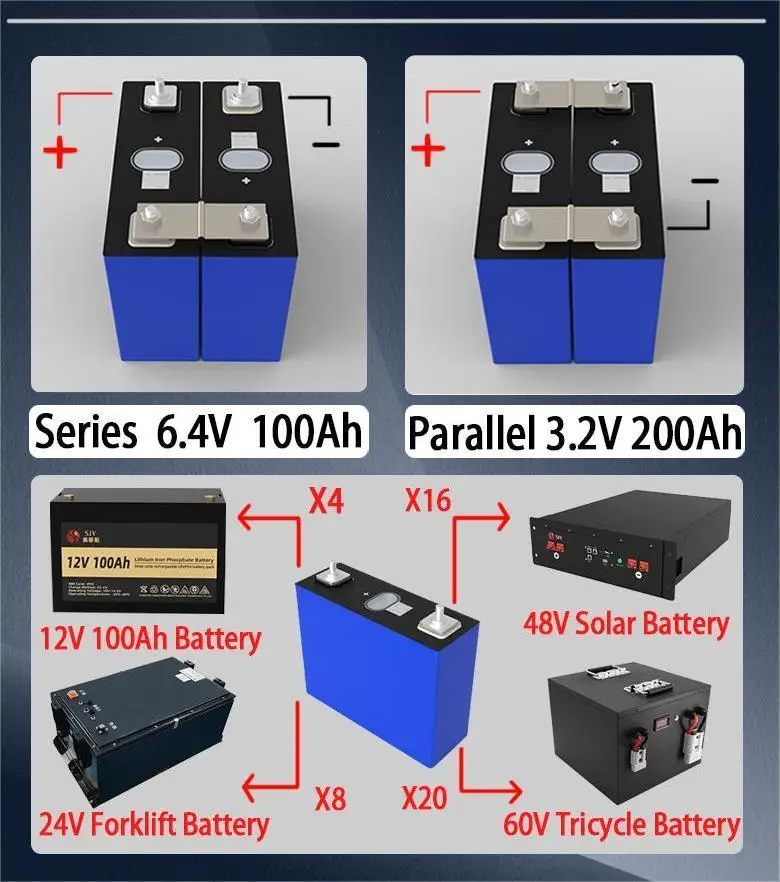

​1) 12V BMS support 4 battery packs in series, ​

2) 24V BMS support 2 battery packs in series. ​

3) 48V BMS don't support battery packs in series. ​All BMS comes with a free collection line

4)The 280Ah battery does not include the BMS !

4.Operating temperature range

Discharger Temperature: -20℃~50℃ ​

Good discharge performance in high/low temperature environments.

5.Inspect the cells before shipping

Match the IR/Voltage of the battery

6.Easily to DIY

Pack including M6 Screw with busbar and nuts. ​With our accessories you can easily to do DIY.

7.We are using a prismatic LiFePO4 battery.The battery is grade A and brand new.

7.1.Advantages of a prismatic LiFePO4 batteries

  • Compared to round LiFePO4 batteries, it can make full use of space

  • Compared with lead-acid batteries, the energy density is higher

  • Compared with lead-acid batteries, it is lighter, has a larger capacity and has a longer life

8.Battery Package

9.Application
