Wall mount Battery Introduce

1.Dimensions and specifications

1-1.25.6V100Ah

Rated Voltage:25.6V

Rated Capacity:100Ah

The battery weight:27±0.3Kg

Rated Total Energy:2.56kWh

Compound mode:8S1P

Internal resistance:≤40 mΩ

cycle life:≥6000cycles @25±2℃, 0.5C/0.5C,80%DOD, residual capacity decay to 80Ah

Standard charging current:20.4A<0.2C>

Max.Charge Current:50A(Charging Current @25 C)

Charge Voltage:29.2V<3.65V/ Cell >

Standard discharge current:50A<0.5C>

Max.Charge Current:100A(Max Continuous Discharge Current @25 C)

Discharge Cut-off Voltage:21.6V<2.7V/ Cell >

Discharge Temperature:-20℃ to 60℃

Charge Temperature:0℃ to 55℃

Dimensions(mm):410mm*370mm*158mm

1-2.51.2V100Ah

Rated Voltage:51.2V

Rated Capacity:100Ah

The battery weight:47±0.3Kg

Rated Total Energy:5.12kWh

Compound mode:16S1P

Internal resistance:≤40 mΩ

cycle life:≥6000cycles @25±2℃, 0.5C/0.5C,80%DOD, residual capacity decay to 80Ah

Standard charging current:20.4A<0.2C>

Max.Charge Current:50A(Charging Current @25 C)

Charge Voltage:58.4V<3.65V/ Cell >

Standard discharge current:50A<0.5C>

Max.Charge Current:100A(Max Continuous Discharge Current @25 C)

Discharge Cut-off Voltage:43.2V<2.7V/ Cell >

Discharge Temperature:-20℃ to 60℃

Charge Temperature:0℃ to 55℃

Dimensions(mm):600mm*410mm*150mm

1-3.51.2V200Ah

Rated Voltage:51.2V

Rated Capacity:≥200Ah

The battery weight:≈95.6Kg

Rated Total Energy:5.12kWh

Compound mode:16S1P

Internal resistance:≤40 mΩ

cycle life:≥6000cycles @25±2℃, 0.5C/0.5C,80%DOD, residual capacity decay to 80Ah

Standard charging current:40.4A<0.2C>

Max.Charge Current:100A(Charging Current @25 C)

Charge Voltage:58.4V<3.65V/ Cell >

Standard discharge current:100A<0.5C>

Max.Charge Current:200A(Max Continuous Discharge Current @25 C)

Discharge Cut-off Voltage:43.2V<2.7V/ Cell >

Discharge Temperature:-20℃ to 60℃

Charge Temperature:0℃ to 55℃

Dimensions(mm):198mm*560mm*730mm

Internet protocol:PACE BMS Modbus Protocol for RS485

2.We are using a prismatic LiFePO4 battery.The battery is grade A and brand new.

2.1.Advantages of a prismatic LiFePO4 batteries

  • Compared to round LiFePO4 batteries, it can make full use of space

  • Compared with lead-acid batteries, the energy density is higher

  • Compared with lead-acid batteries, it is lighter, has a larger capacity and has a longer life

3.The structure of the battery

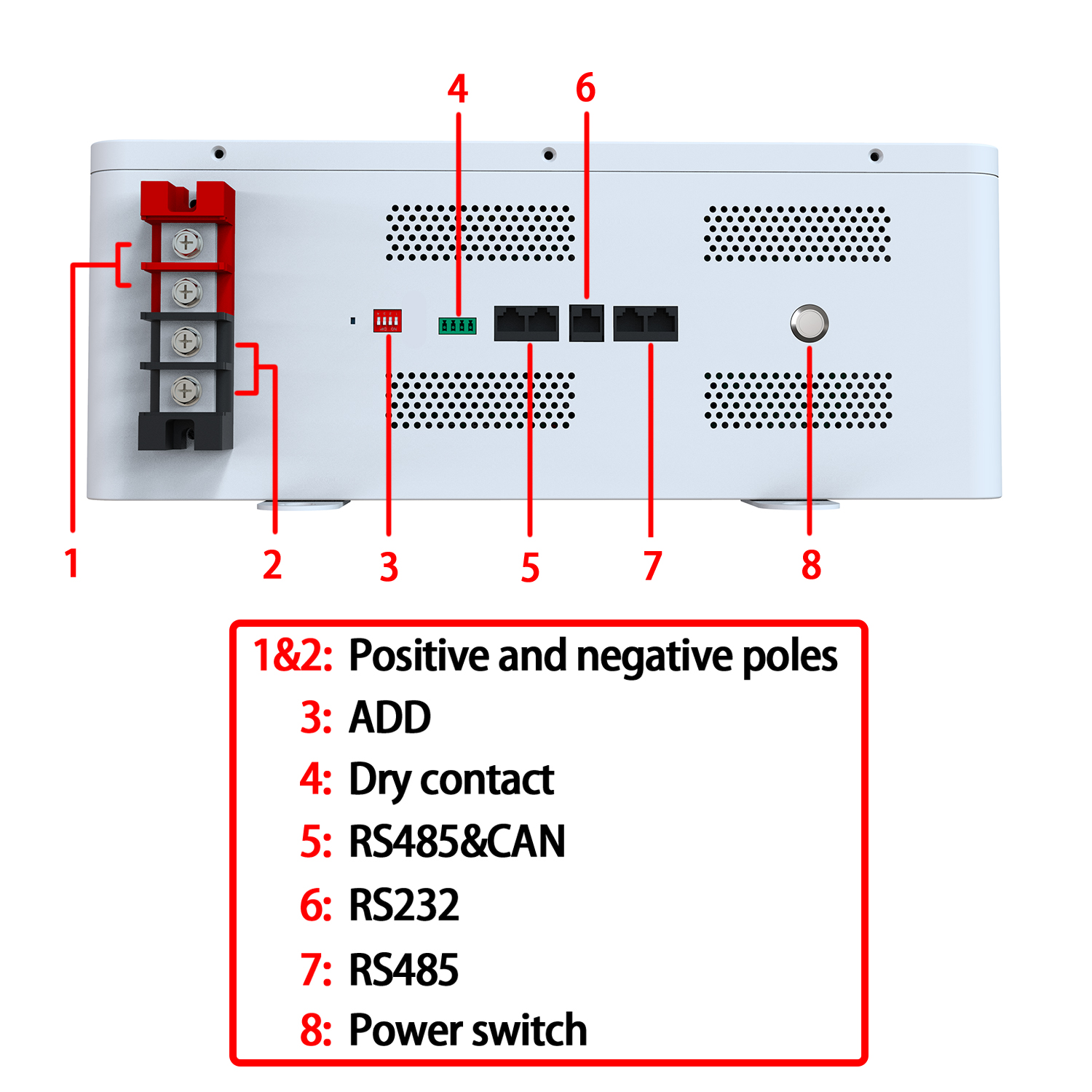

3-1.25.6V100Ah

3-2.51.6V100Ah

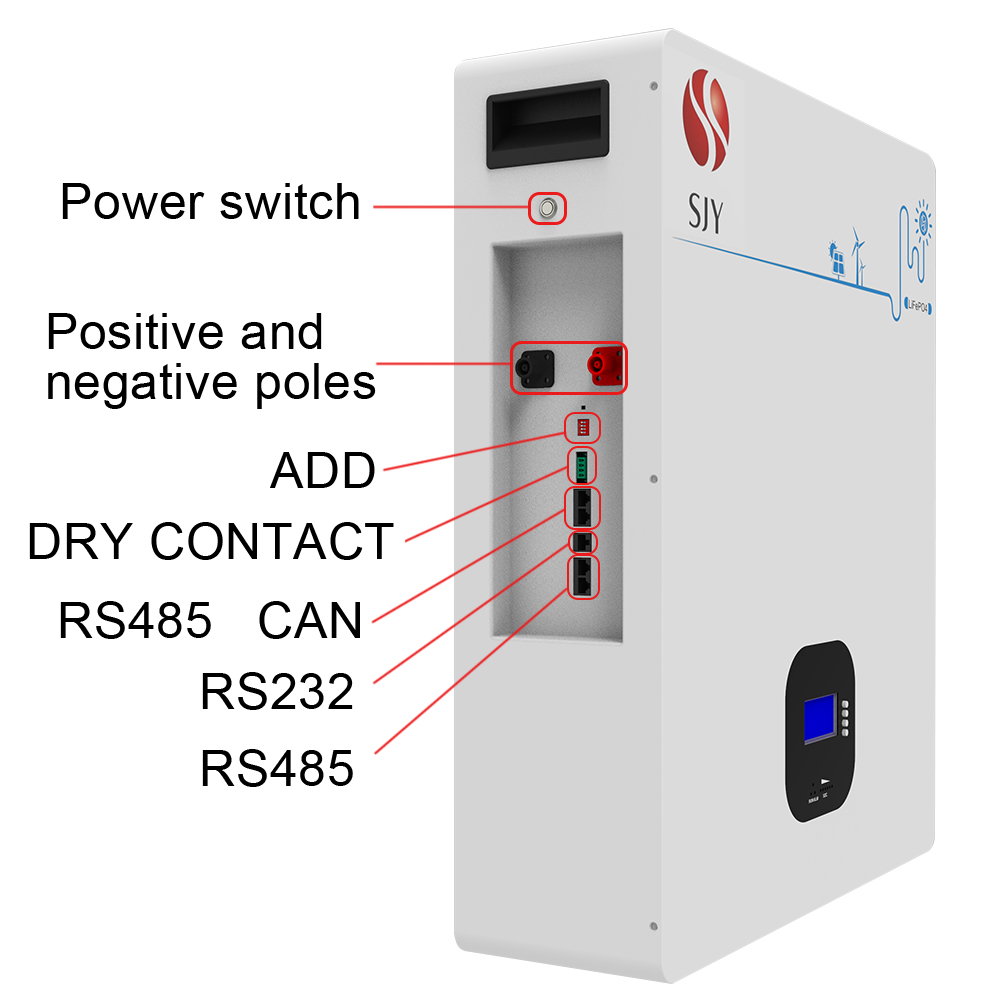

3-3.51.2V200Ah

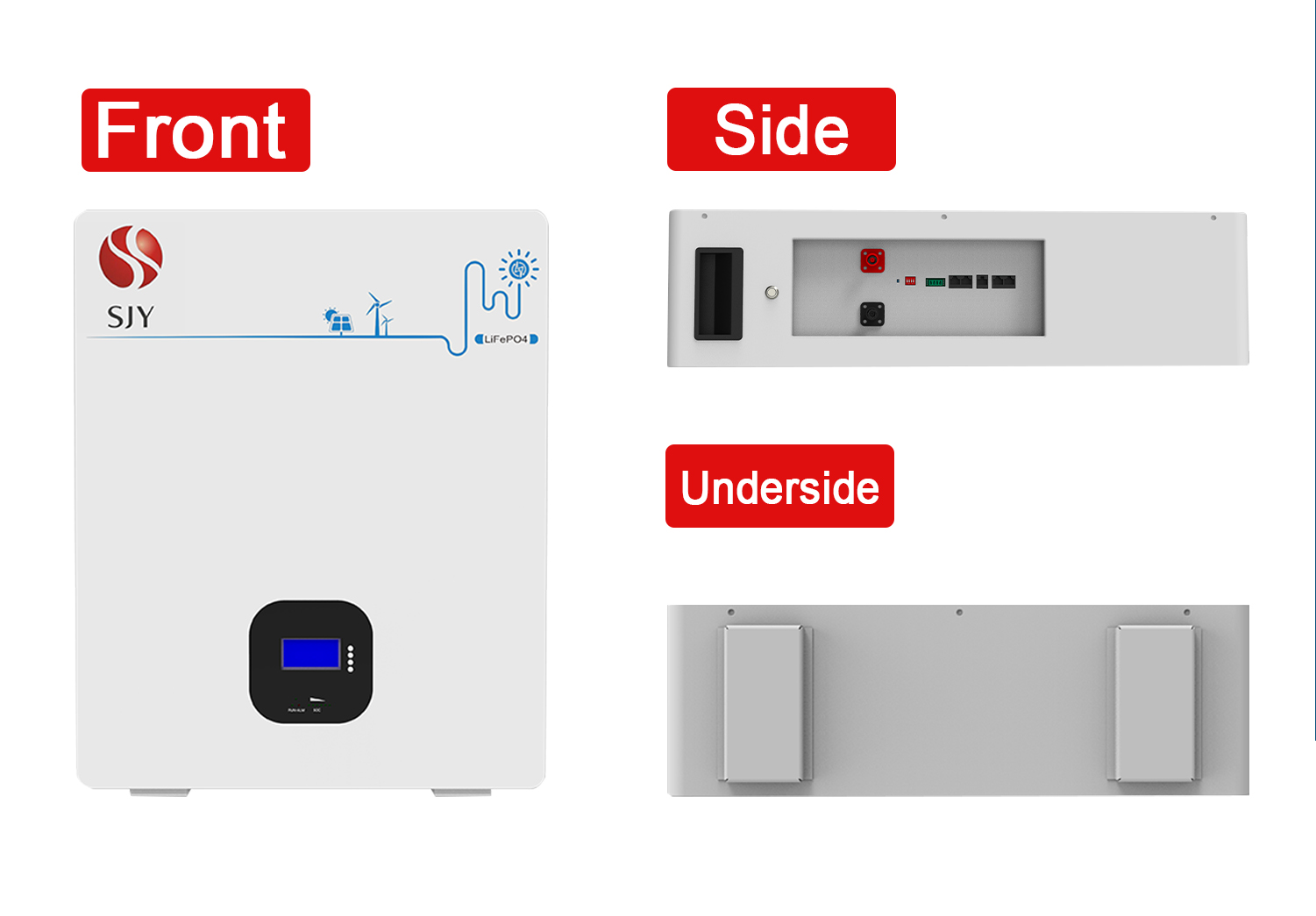

4.Battery shape

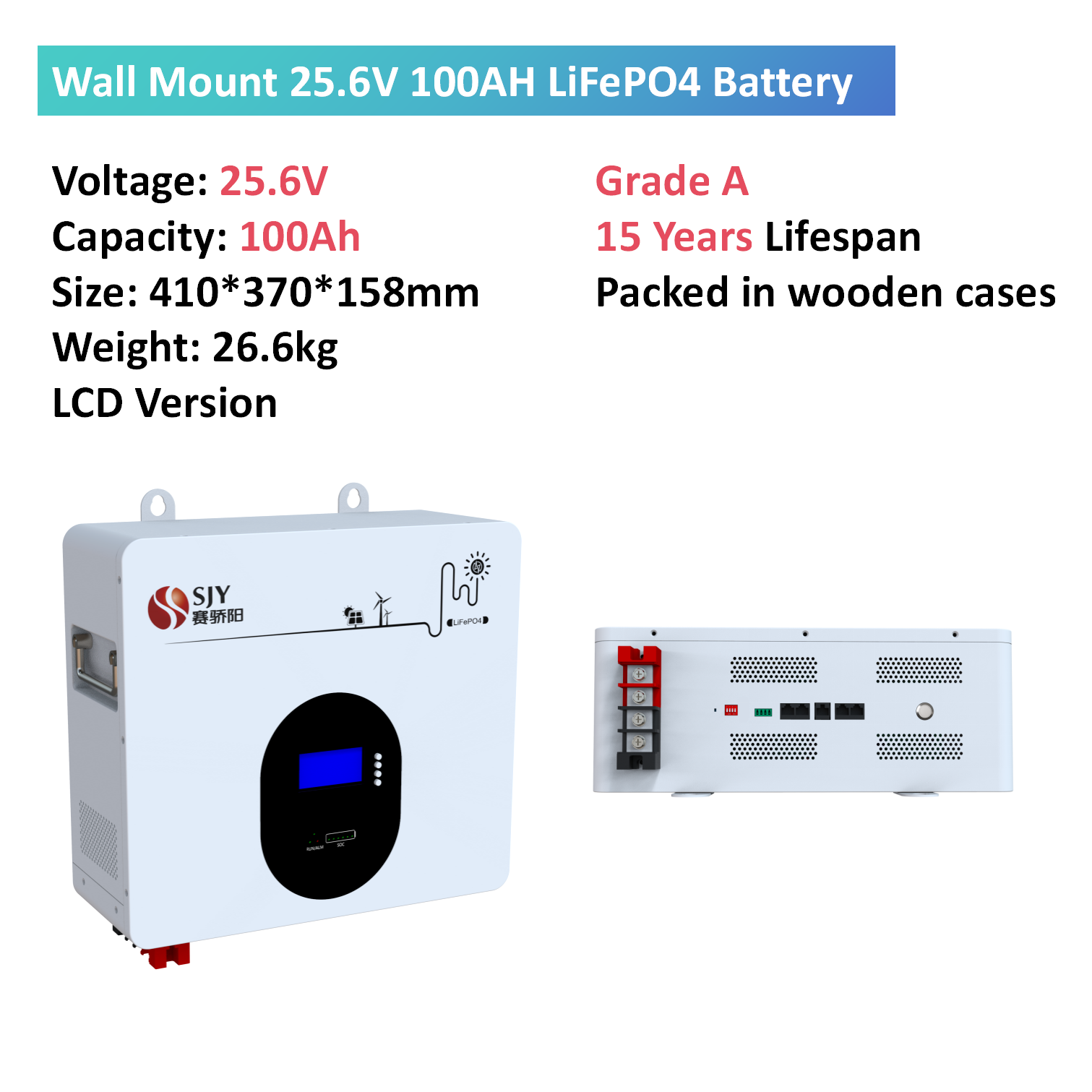

4-1.25.6V100Ah

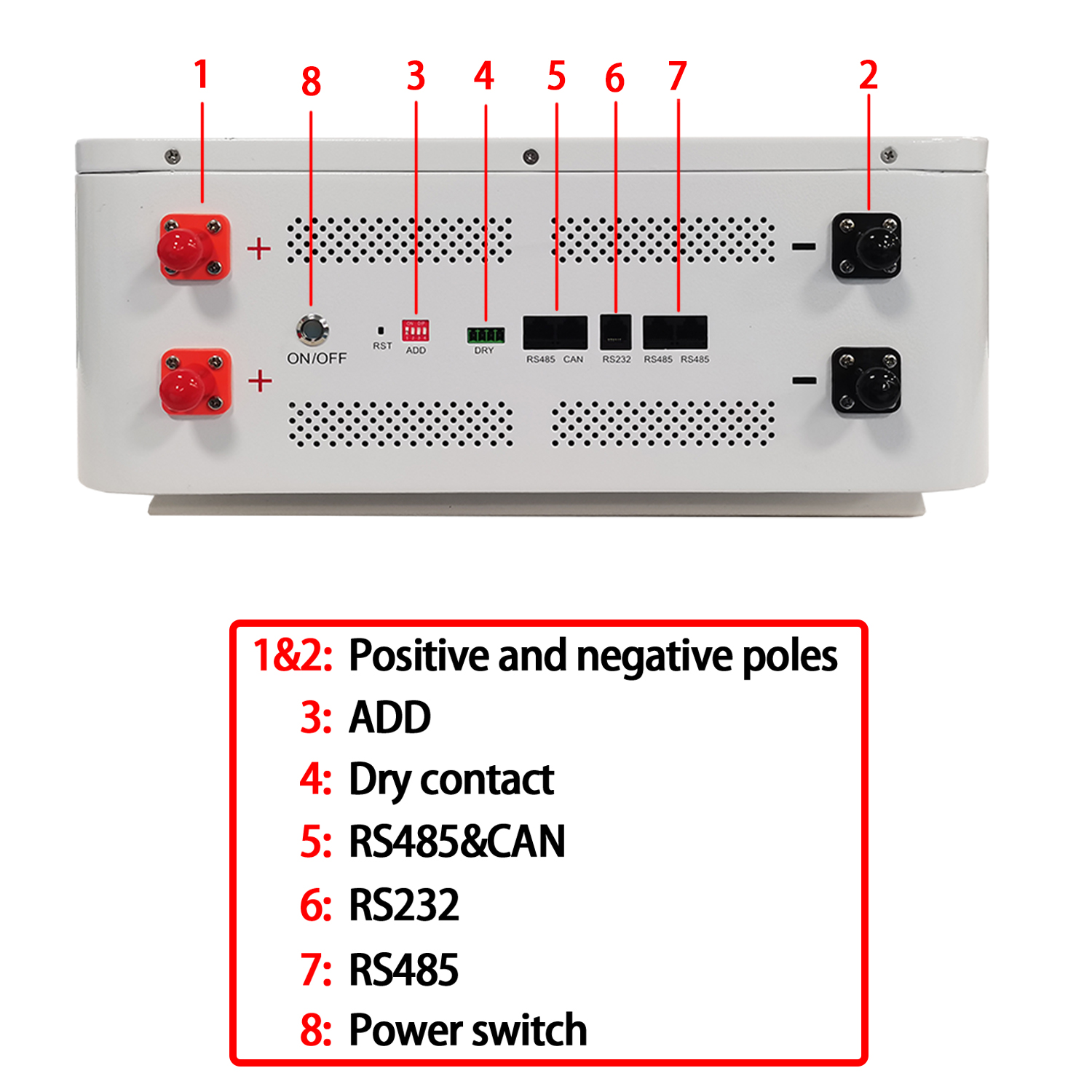

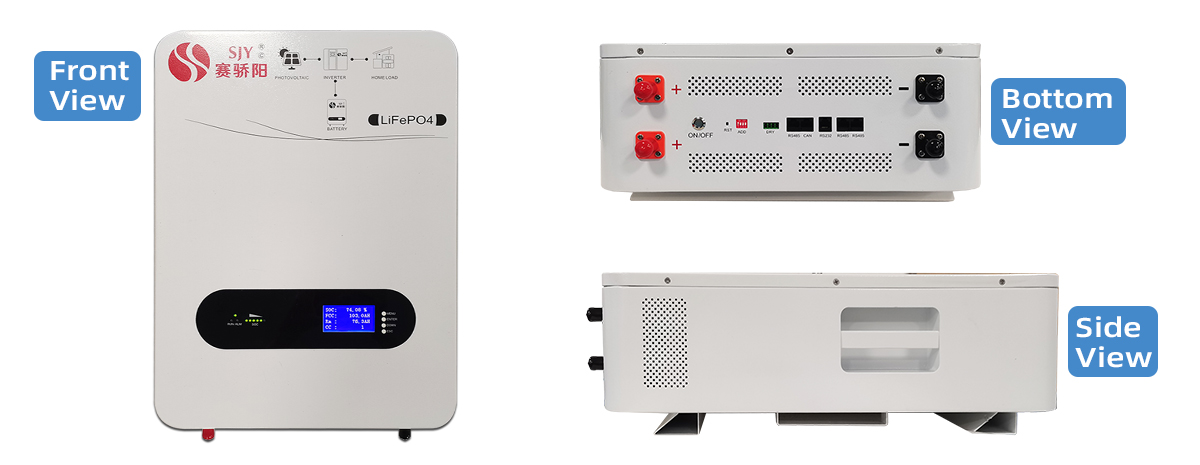

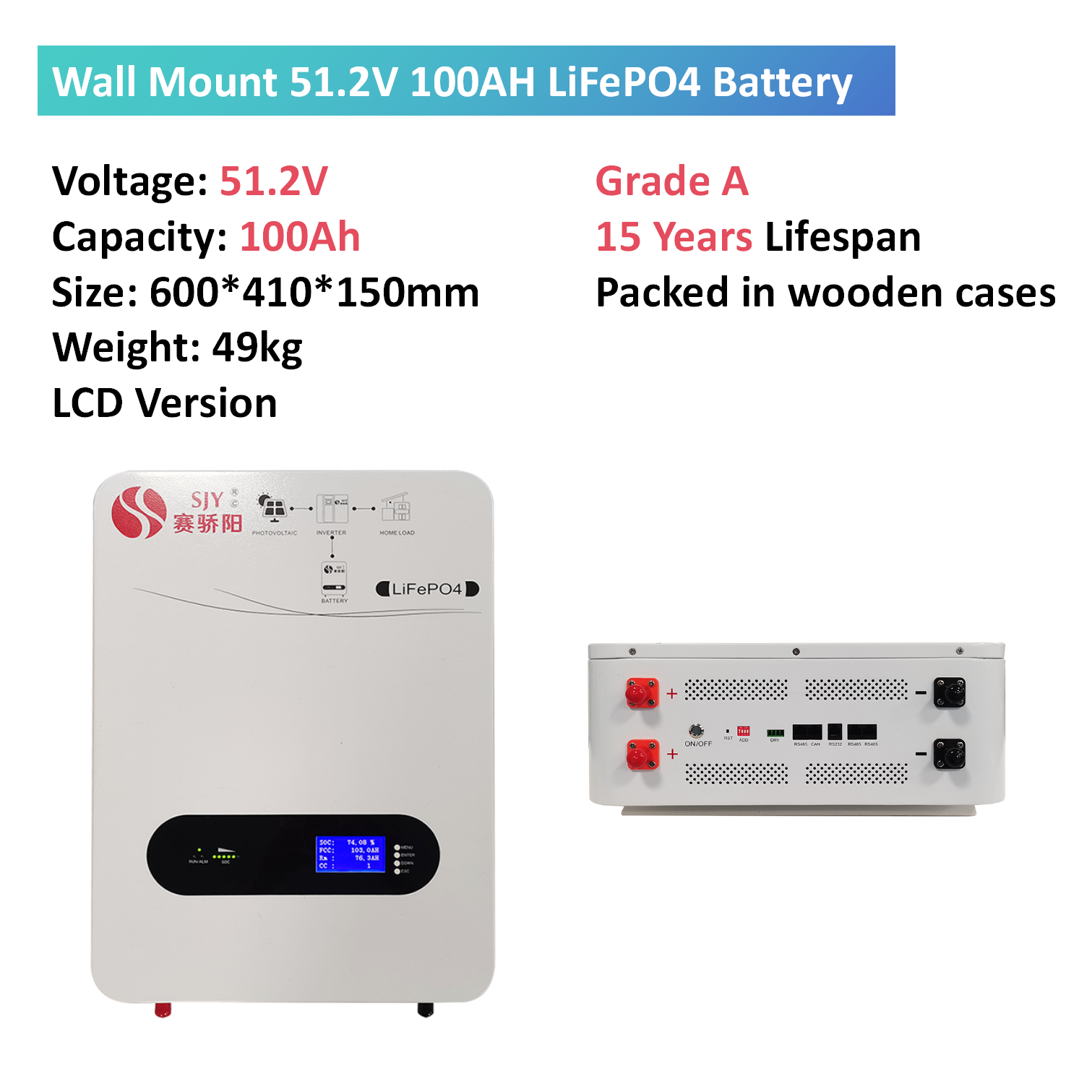

4-2.51.2V100Ah

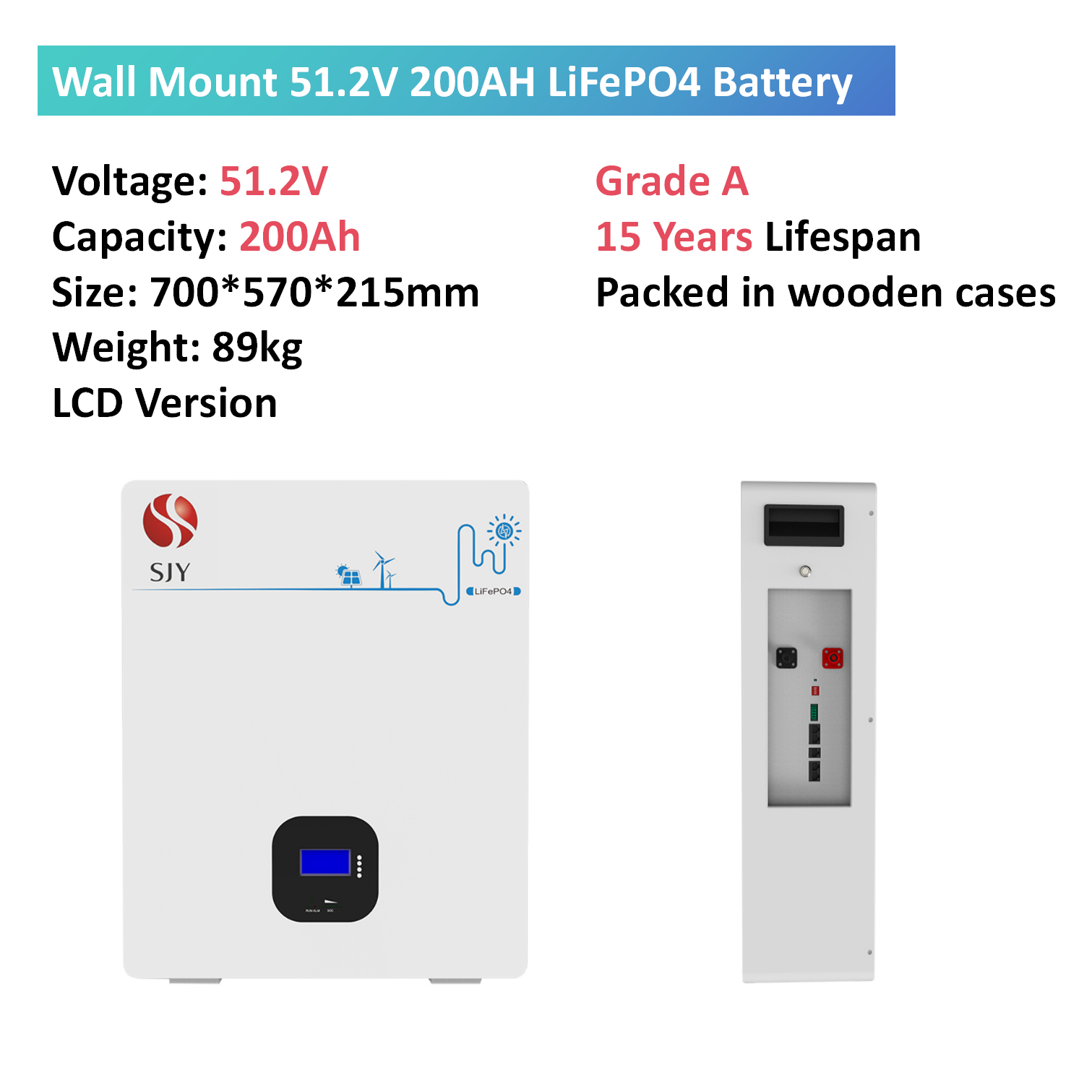

4-3.51.2V200Ah

5.The scope of application of the battery
